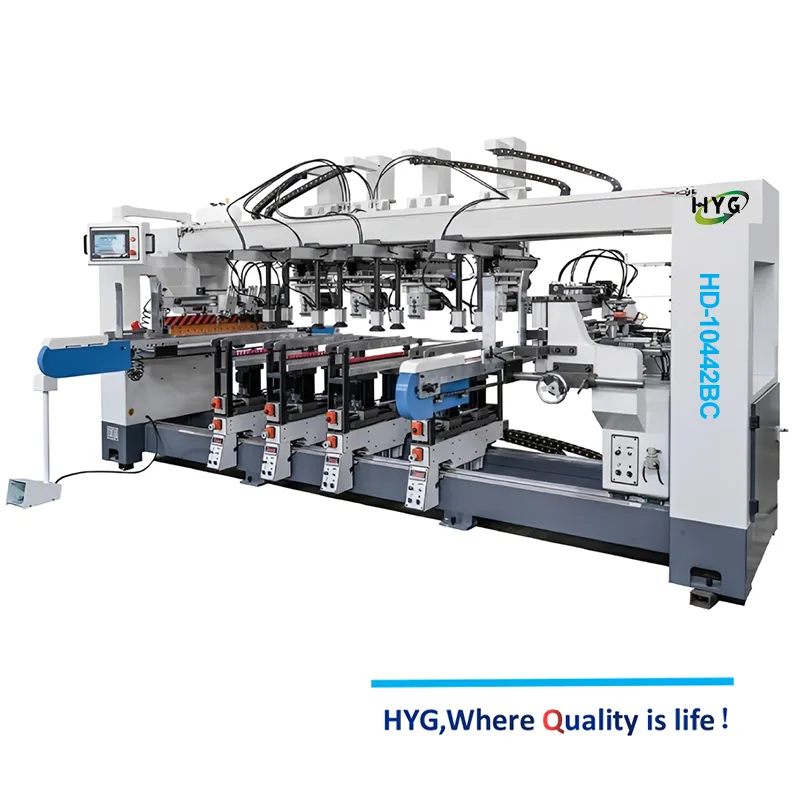

Symmetric 10-Row CNC Boring Machine with 4-Top/4-Bottom Layout (Model HD-10442BC)

Eliminate bottlenecks on both sides of the panel. The HD-10442BC is the industry’s ultimate answer to “double-sided complexity.” While other machines prioritize one face over the other, this 10-row giant delivers equal, massive firepower to both the top and bottom surfaces.

Designed for the most demanding reversible furniture components and complex office systems, this machine features a perfectly balanced 4-Top / 4-Bottom configuration. This ensures that no matter how dense the hole pattern is on the upper face or the underside, the machine processes it at maximum speed without waiting for one side to catch up.

The Power of Perfect Symmetry

1. Balanced “4+4” Vertical Architecture

Most heavy-duty borers skimp on the top rows (usually only 2 or 3). The HD-10442BC changes the game with:

• 4 Top Rows: Massive capacity for top-side hinges, decorative holes, and surface fittings.

• 4 Bottom Rows: Equal capacity for underside structural dowels and hidden connectors.

• The Advantage: This Mirror-Image Setup is ideal for “Batch-Size-One” production where the complexity of the board’s top and bottom faces varies wildly from piece to piece.

2. Heavy-Duty 30KW Drive System

Driving 8 vertical rows and 2 side rows requires immense torque. We have equipped this model with a 30KW Motor Power system.

• Performance: This ensures consistent rotational speed (2840rpm) across all spindles, even when drilling deep holes simultaneously on both faces into hard materials like solid wood or HPL (High-Pressure Laminate).

3. Deep-Hole Structural Drilling

Like its siblings in the heavy-duty range, the HD-10442BC supports a Max Boring Depth of 60mm.

• Why it matters: With the symmetric layout, you can drill deep structural holes from both top and bottom meeting in the middle (for extra thick panels) or offset for complex joinery, offering unmatched structural design freedom.

4. Industrial Scale Processing

This is a substantial machine for substantial jobs. With a footprint of 4360 x 2850 x 2250mm, it provides a rigid, vibration-free platform for processing large panels up to 2500 x 640mm.

Technical Specifications

Ideal Applications

• Complex Office Desks: Tops often require cable grommet holes (Top) and heavy structural leg connections (Bottom).

• Reversible Partitions: Panels that need identical or equally complex hole patterns on both faces.

• Laboratory Furniture: Heavy-duty, chemical-resistant panels requiring deep drilling from both sides for specialized hardware.

FAQ: 10-Row Comparison (10352BC vs 10442BC)

I see two 10-row models. How do I choose between HD-10352BC and HD-10442BC?

It comes down to where your “holes” are located:

• Choose HD-10352BC (3-Top / 5-Bottom): If your primary headache is invisible connectors on the bottom. You need maximum variety (5 rows) on the underside.

• Choose HD-10442BC (4-Top / 4-Bottom): If your furniture is highly complex on BOTH sides. If you find yourself running out of tool stations on the top face with standard machines, this symmetric “4+4” layout is your solution.
