Manual Bevel & Straight Edge Banding Machine with 30°-90° Tilting (Model HE-305B)
Master the art of “Handle-Less” furniture design. The HYG HE-305B is not just a standard edge bander; it is a specialized tool engineered for the modern trend of geometric and angular joinery.
While standard machines are limited to 90-degree edges, the HE-305B features a robust Adjustable Tilting Structure. This allows workshops to band beveled edges (from 30° to 90°) with the same ease as straight edges. It is the ideal solution for producing 45-degree finger-pull drawers, mitered cabinet doors, and architectural angled panels.
Engineered for Angles and Precision
1. 30°-90° Angle Versatility
The defining feature of the HE-305B is its flexibility.
Bevel Mode: Loosen the lock and tilt the operational unit to band edges at any angle between 30 degrees and 90 degrees. This is essential for creating seamless miter joints.
Straight Mode: Lock it at 90 degrees, and it functions as a powerful straight edge bander for standard panels up to 60mm height.
2. Pneumatic Feeding & Cutting Automation
Manual doesn’t mean “imprecise.” The HE-305B integrates a pneumatic edge banding feeding and cutting system.
The Benefit: Instead of relying on hand pressure or manual foot pedals for cutting, the machine uses a high-quality pneumatic shear blade. This delivers strong cutting force and precise tape lengths, ensuring accurate starts and stops on angled corners.
3. Intelligent Temperature Control
Glue failure on a beveled edge is a disaster. The HE-305B eliminates guesswork with an automatic temperature controller.
Smart Consistency: It regulates the heat based on the specific melting point of your hot melt adhesive, preventing glue carbonization (burning) or weak bonding due to low heat.

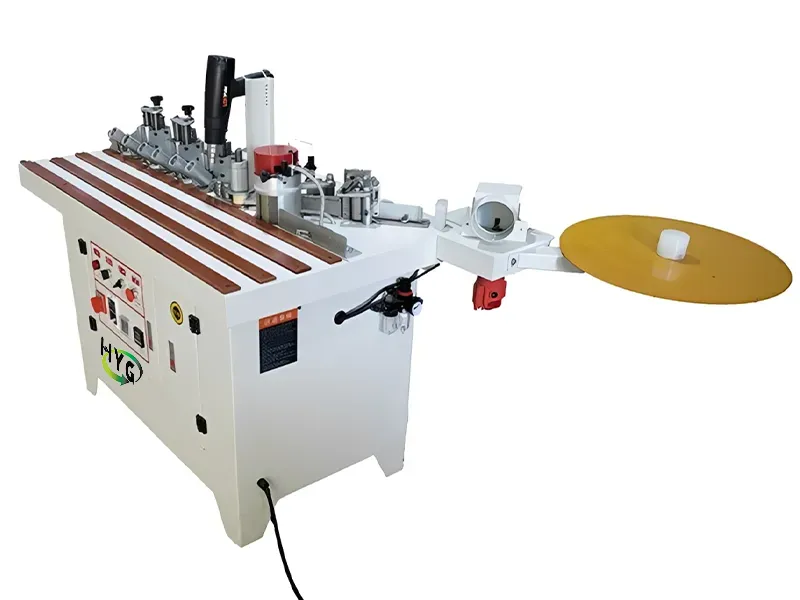

4. Ergonomic “Large Table” Design
Handling angled boards requires stability. We upgraded the HE-305B with a taller and larger operating table.
Comfort & Control: The ergonomic height and expanded surface area allow operators to maneuver heavy or long bevel-cut panels comfortably, reducing fatigue and improving edge quality.
Technical Specifications
| Parameter | Specification |
| Model | HE-305B (Bevel Series) |
| Machine Type | Tilt-Table Manual Edge Bander |
| Bevel Angle Range | 30° – 90° Adjustable |
| Straight Edge Height | 10 – 60 mm |
| Edge Band Thickness | 0.3 – 2 mm |
| Cutting System | Pneumatic Shear Blade (High Accuracy) |
| Total Power | 2.2 kW |
| Air Pressure | 0.6 MPa |
| Machine Weight | 260 kg |
| Dimensions | 1500 * 800 * 1100 mm |
| Voltage | 220V / 380V (Optional) |
Ideal Applications
Handle-Less Kitchens: Banding the 45-degree “J-pull” or finger-pull profiles on drawer fronts.
Mitered Cabinetry: Preparing edges for waterfall islands or seamless box joints where boards meet at an angle.
Commercial Fit-outs: Angled reception desks and geometric display units.
FAQ: Why do I need a Bevel Edge Bander?
Can’t I just use a regular machine and tilt the board?
No. Holding a board at a perfect 45-degree angle against a standard machine manually is impossible to do consistently. The HE-305B tilts the glue roller and tape, allowing you to feed the board flat (or supported). This ensures constant pressure and a perfect bond on the slope.
Is it difficult to switch between 45° and 90°?
Not at all. The angle adjustment mechanism is designed for quick changes. You can switch from processing standard shelves (90°) to bevel-cut drawer fronts (45°) in minutes, making it perfect for small-to-medium workshops with varied daily tasks.

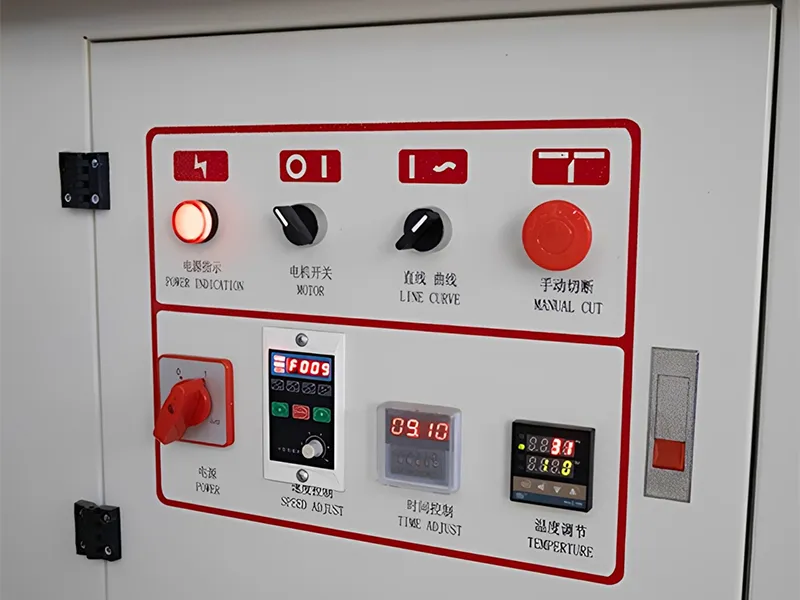

Temperature Control
The temperature controller automatically controls the temperature based on the sealing tape and the desired melt temperature of the hot melt adhesive.

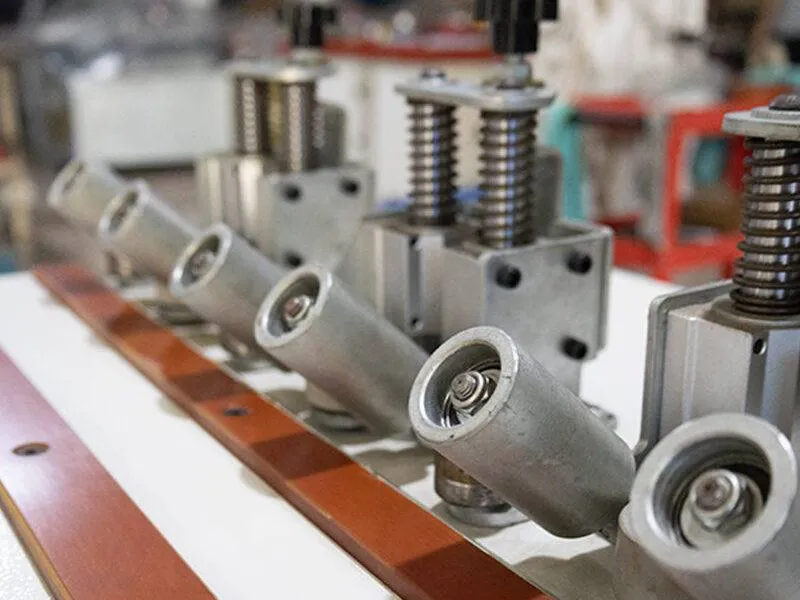

Pneumatic Cut guide wheel mechanism
- Optimized Pressure Application: The rollers apply uniform and consistent pressure as the edge banding tape meets the glued panel edge, ensuring a tight and secure initial bond.
- Superior Bonding Strength: Continuous, even pressure forces hot-melt adhesive deep into the substrate material, eliminating air pockets or bubbles and creating a robust, durable, and long-lasting seal.
- Precision Guidance & Positioning: Acting as a precise guiding mechanism, these rollers guide both the panel and the edge banding material seamlessly through the machine, preventing material deviation and ensuring accurate, error-free placement.
- Enhanced Aesthetic Finish: The smooth, consistent pressure application results in a clean, flat, and professional edge finish, free from wrinkles or misalignment, significantly enhancing the overall quality and appearance of the final furniture or panel product.
- Versatile and Professional-Grade Performance:
- Precision Capability: Demonstrating complex pressure wheel and adjustment mechanisms (e.g., knobs and springs), this system ensures professional-level edge banding quality, even on portable/manual devices.
- Material Compatibility: The design guarantees highly efficient edge treatment for both straight-edge and angled panels, ensuring operational convenience while delivering high-quality results across various woodworking applications.

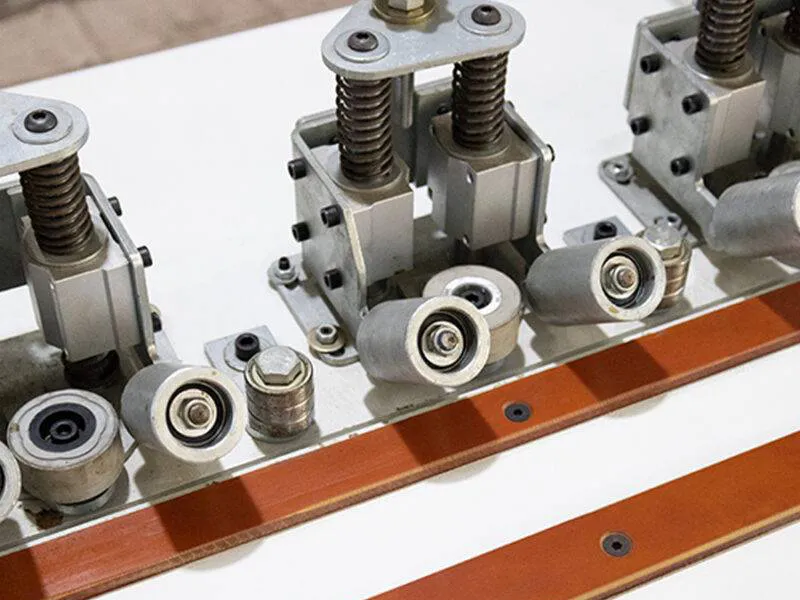

The pressure roller and feeding system
Precision mechanical structures and adjustable components ensure that even manual or portable edge banders provide professional, controllable edge banding solutions. These tools are capable of processing edge banding tapes made from various materials (PVC, ABS, or wood veneer) and with diverse thicknesses (0.4mm to 3mm). This makes them ideal for both straight edges and angled edges in furniture manufacturing or renovation projects.

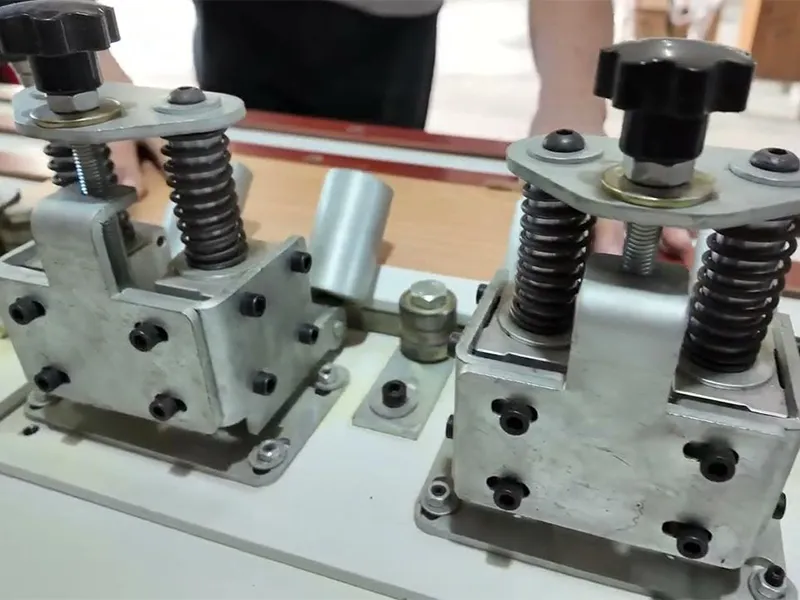

Finishing and edge trimming unit
- Precise Edge Trimming: Dedicated R-cutter blades effectively remove excess edge banding tape extending beyond the top and bottom surfaces of the panel. This ensures a flush, smooth, and seamless edge finish.
- Ripple Elimination/Scraping: The integrated scraping unit (a key function, even if not explicitly pictured) is designed to eliminate fine cutter marks or “wave marks” left by the trimming process. This results in a perfectly smooth touch and clean, professional appearance.
- Guiding & Positioning System: Featuring spring-loaded guides and adjustable knobs, these precise mechanical structures act as an accurate guiding mechanism. They ensure the cutters move along the panel edge consistently, adapting to various board thicknesses to guarantee uniform, high-quality results every time.

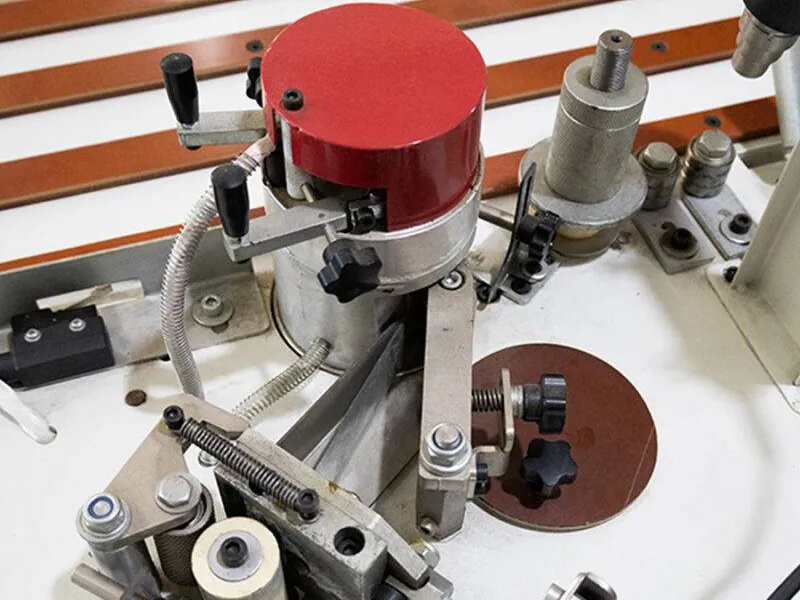

Trimming and scraping units
- Precision Trimming: The unit’s R-cutter blades are engineered to precisely remove excess edge banding tape extending above and below the panel surface. This ensures a perfectly flush finish that is smooth and seamlessly integrated with the board.
- Scraping & Ripple Elimination: After trimming, a dedicated scraper unit employs a blunt blade to smooth out any minor tool marks or ripple effects. This critical step ensures the edge banding is perfectly smooth to the touch and presents a cleaner, professional appearance.
- Guiding & Positioning: The visible guide rollers and adjustable knobs form part of the machine’s precise guiding mechanism. They ensure the cutters and scrapers track accurately along the panel edge, adapting to varying board thicknesses and banding widths to guarantee processing consistency and uniform results.
Heat gun
- Adhesive Activation: The hot air gun releases a high-temperature airflow (typically between 100°C and 550°C), which rapidly melts the pre-applied hot-melt glue on the edge banding tape.
- Secure Bonding: Once the adhesive is in a molten state, the machine’s pressure rollers firmly press the edge banding strip onto the panel edge, ensuring a strong, reliable bond and completing the edge banding process.
- Easy & Efficient Operation: This integrated hot air system simplifies the application process compared to traditional manual gluing methods, significantly boosting production efficiency and saving time.
- Wide Material Compatibility: The equipment is suitable for various edge banding materials, including PVC, ABS, melamine paper, and wood veneer.
- Aesthetic & Durable Results: Precise heating ensures the glue fully melts and is pressed tightly, resulting in a flat, smooth, and durable edge, making furniture look more professional and enhancing its longevity.
- High Flexibility: Portable, handheld edge banders are compact and lightweight, making them easy to move between job sites. This makes them especially suitable for DIY enthusiasts, small workshops, or on-site decoration projects.
OUR CERTIFICATES
Technical Specifications
| Parameter | Specification |
| Model | HE-305B (Bevel Series) |
| Machine Type | Tilt-Table Manual Edge Bander |
| Bevel Angle Range | 30° – 90° Adjustable |
| Straight Edge Height | 10 – 60 mm |
| Edge Band Thickness | 0.3 – 2 mm |
| Cutting System | Pneumatic Shear Blade (High Accuracy) |
| Total Power | 2.2 kW |
| Air Pressure | 0.6 MPa |
| Machine Weight | 260 kg |
| Dimensions | 1500 * 800 * 1100 mm |
| Voltage | 220V / 380V (Optional) |
