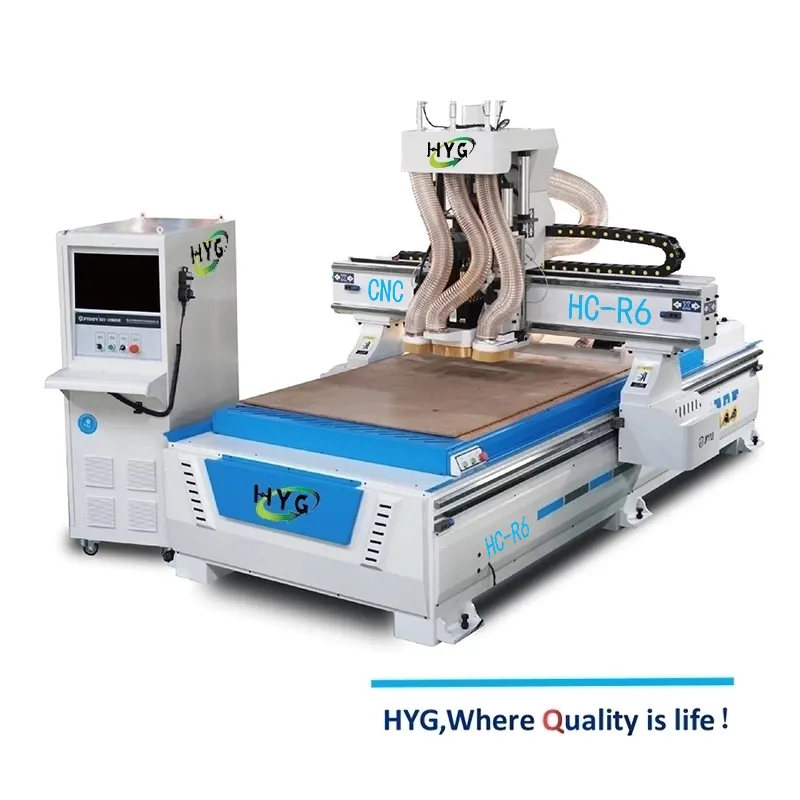

Why Choose Our Furniture CNC Router HC-R6 for Smart Production?
In the era of Industry 4.0, traditional woodworking equipment can no longer meet the demands of custom furniture manufacturing. Our Furniture CNC Router machine is specifically engineered for Smart Production, bridging the gap between design software and physical manufacturing. Whether you are producing kitchen cabinets, wardrobes, or office furniture, this machine serves as the heart of your automated production line.
Best CNC Router Manufacturer in China
Foshan HanyuGlobal Co.,Ltd– Top 10 Woodworking CNC Router Manufacturer in China Since 2010. We are a real factory-direct CNC router supplier located in Foshan
Processing unit
Spindle: Two 6kw high-speed electric spindle are used; with one drilling package;
Maximum speed: 18000rpm;
Tool change method: Manual;
High precision, long life, stable work
Servo Motors and Drivers
The drives of each axis use high-quality servo motors of well-known brands to ensure the precise displacement of each axis and the precision of the equipment.
Gears and Racks
The X/Y axis is driven by helical gears, which has large bearing capacity and high precision, and is more durable than traditional spur gears.
Adsorption table
Suction table Matrix polyester table top and MDF. The adsorption area is divided into four groups, and the adsorption table area can be opened and closed manually according to the size of the board.
Drag chain
The Igus drag chain imported from Germany has a long service life and effectively protects the cables from wear and tear.
High-order intelligent vector inverter
Adjustable frequency conversion 7.5KW
Lubrication system
The machine is equipped with an automatic oil injection lubrication system to ensure machining accuracy and prolong service life
OUR CERTIFICATES
| Name： | Specification： |
|---|---|
| Model | Furniture CNC Router Machine HC-R6 |
| Working Table Size | 1300×2500 mm |
| range of spindle speed | 18000 - 24000 rpm |
| positioning accuracy | 0.01 mm |
| X/Y/Z repeatability | 0.01 mm |
| X axis travel | 2440 mm |
| Repeat positioning accuracy | 0.05mm |
| Y axis travel | 1220 mm |
| Spindle power | 6.0kw*2+2.2kw |
| Spindle speed | 18000/24000 r/min |
| Maximum empty speed | 80m/min |
| Maximum working speed | 25 m/min |
| Driving system | servo system |
| Transmission form | X、Y rack、Z screw rod |
| Run command | G Code |
| Dockable software | Haisense, Iwanshang, Xinxiaoyuan, Yunxi, 1010, Eggrj, etc. |
| Working voltage |
AC380V/50HZ Can custom made |
| Dimension(l*w*h) | 3700*2350*2200 mm |
| Weight | 3000 kg |
