HYG CNC Router Machine HC-R12:
This CNC woodworking router is designed for outstanding performance with a 9kW high-speed electric spindle and precision servo motors. Its generous working area of 1300mm by 2500mm, combined with a repeat positioning accuracy of 0.05mm, ensures reliable precision. Durable helical gears enhance its robustness, while the adsorption table’s four-zone design allows for adaptable operation. To safeguard cables effectively, it employs a German-imported Igus drag chain for maximum longevity.

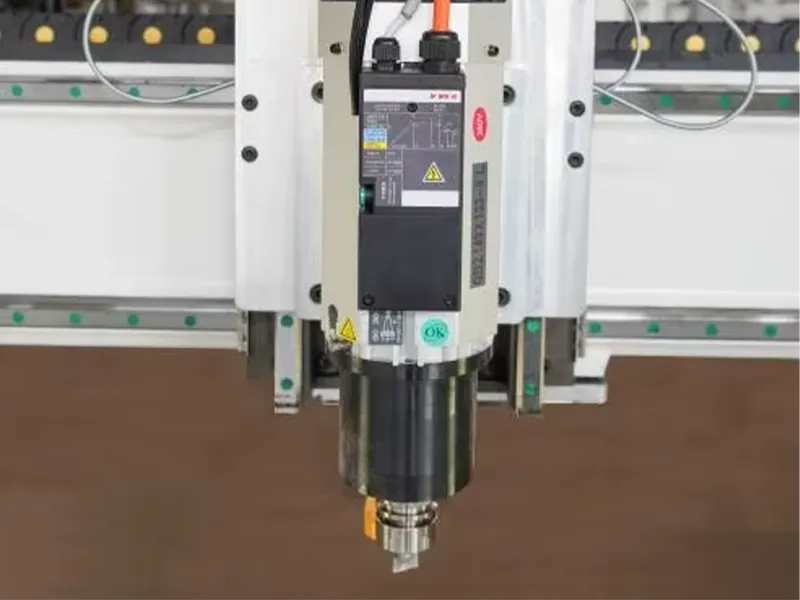

Processing unit
Spindle: One 9kw high-speed electric spindle is used; Maximum speed: 18000rpm;
Tool change method: automatic;
High precision, long life, stable work.
Servo Motors and Drivers
The drives of each axis use high-quality servo motors of well-known brands to ensure the precise displacement of each axis and the precision of the equipment.
Gears and Racks
The X/Y axis is driven by helical gears, which has large bearing capacity and high precision, and is more durable than traditional spur gears.
Adsorption table
Suction table Matrix polyester table top and MDF. The adsorption area is divided into four groups, and the adsorption table area can be opened and closed manually according to the size of the board.

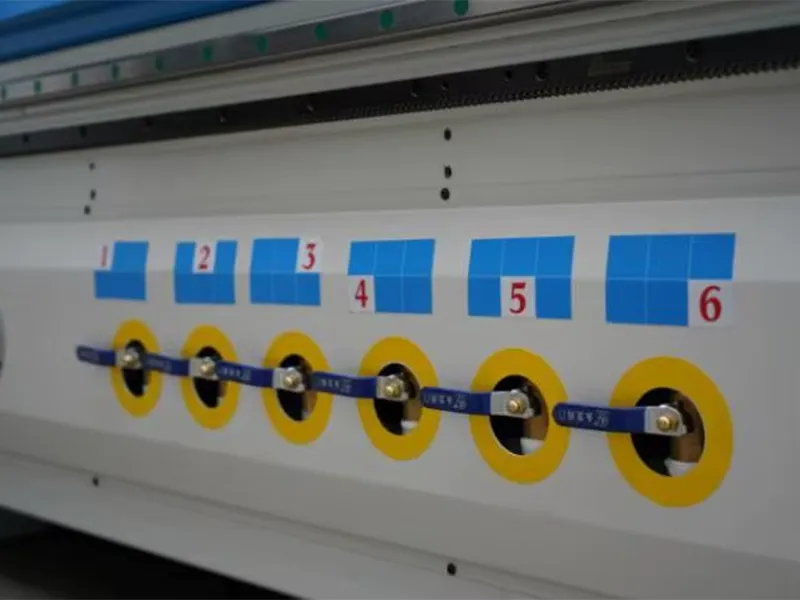

Vacuum area control
The vacuum area of the entire working surface is controlled by 6 independent switches, which can complete the processing of various workpieces and make reasonable use of the suction board space.
Drag chain
The Igus drag chain imported from Germany has a long service life and effectively protects the cables from wear and tear.

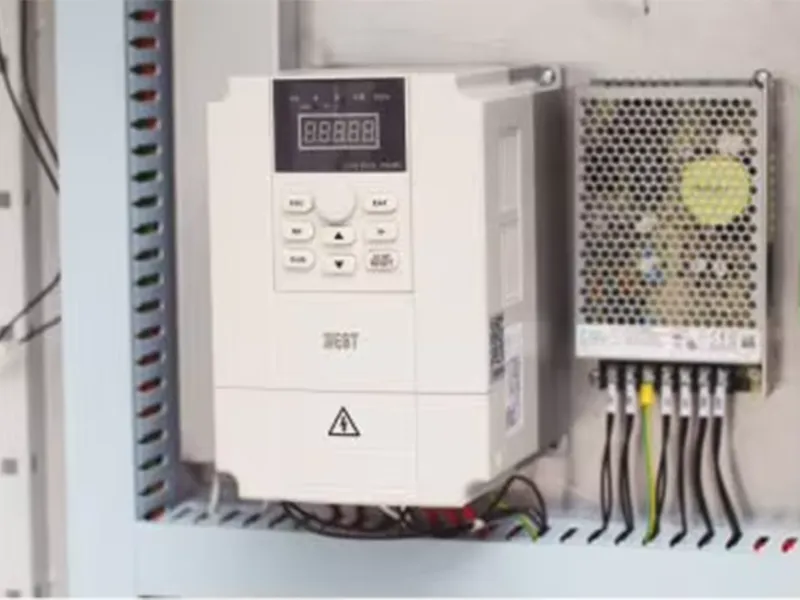

High-order intelligent vector inverter
Adjustable frequency conversion 7.5KW

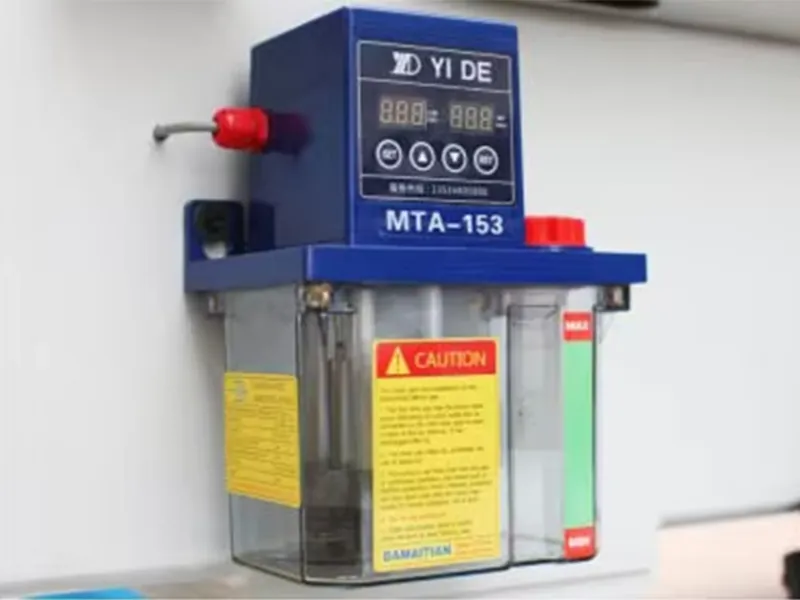

Lubrication system
The machine is equipped with an automatic oil injection lubrication system to ensure machining accuracy and prolong service life
OUR CERTIFICATES
| Name： | Specification： |
|---|---|
| Model | HYG CNC Router Machine HC-R12 |
| Working Table Size | 1300×2500 mm |
| range of spindle speed | 18000 - 24000 rpm |
| positioning accuracy | 0.01 mm |
| X/Y/Z repeatability | 0.01 mm |
| X axis travel | 2440 mm |
| Repeat positioning accuracy | 0.05mm |
| Y axis travel | 1220 mm |
| Spindle power | 9.0kw |
| Spindle speed | 18000/24000 r/min |
| Maximum empty speed | 60m/min |
| Maximum working speed | 25 m/min |
| Driving system | servo system |
| Transmission form | X、Y rack、Z screw rod |
| Run command | G Code |
| Dockable software | Haisense, Iwanshang, Xinxiaoyuan, Yunxi, 1010, Eggrj, etc. |
| Working voltage |
AC380V/50HZ Can custom made |
| Dimension(l*w*h) | 3700*2350*2200 mm |
| Weight | 2200 kg |
