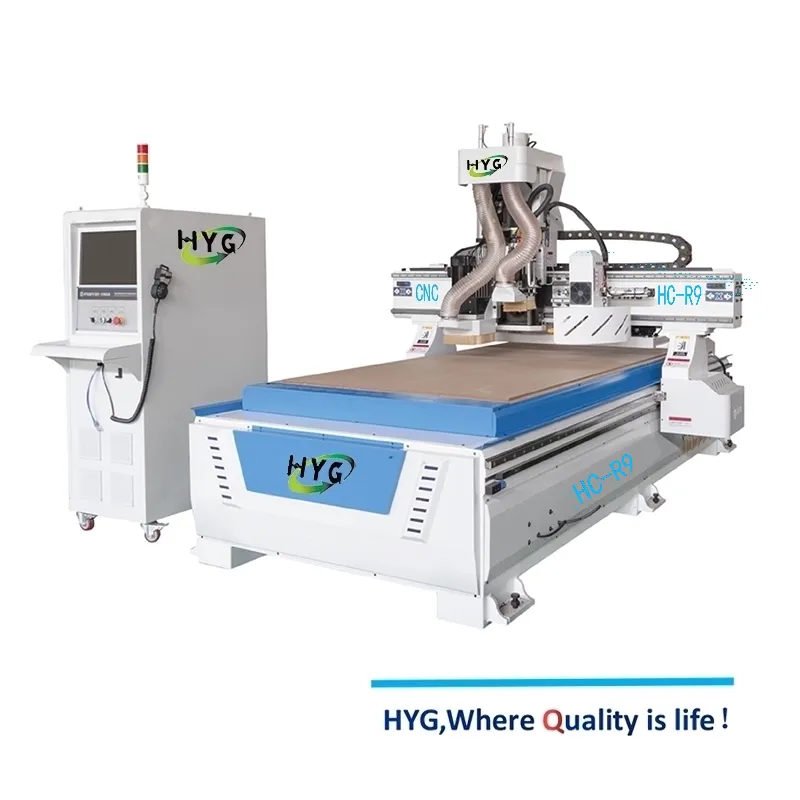

Manufacturing cabinet doors and interior doors demands a higher level of rigidity and software integration than simple panel sizing. The CNC Router Cutting Machine for Door Panel Production is built to bridge the gap between creative design and industrial output.

Whether you are producing Thermofoil (PVC) MDF doors, paint-grade cabinet doors, or solid wood entry doors, this machine offers the versatility to handle complex toolpaths with speed and accuracy.

Key Features Optimized for Door Making

• High-Fidelity Surface Finish: The machine features a heavy-duty, stress-relieved frame and a high-precision helical rack system. This rigidity eliminates micro-vibrations during high-speed routing, ensuring that the CNC Router Cutting Machine for Door Panel Production leaves a smooth bottom finish essential for membrane pressing or painting.

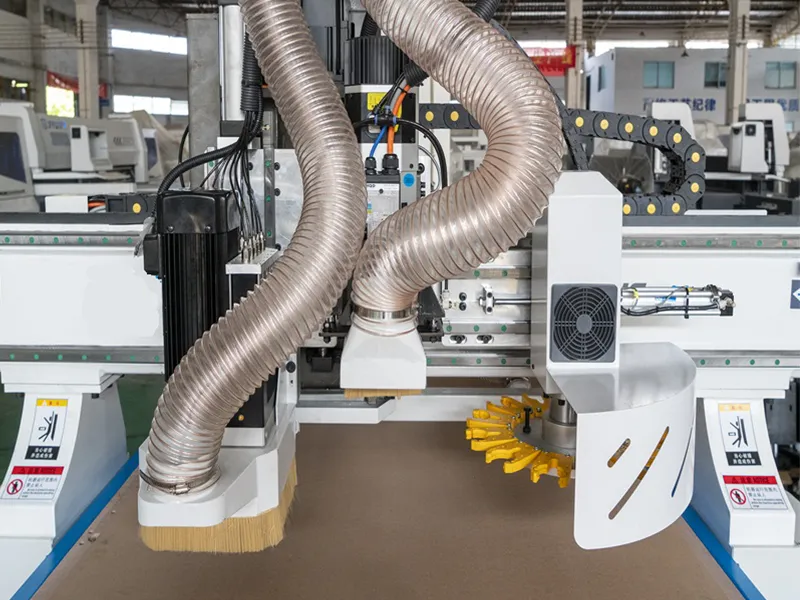

• Automatic Tool Changer (ATC) for Multi-Profile Doors: Complex door designs (like Raised Panel or Shaker styles) often require 3 to 5 different tools per panel (e.g., large hogging bit, profile bit, cleaning bit, and cutout bit). The 12+ position ATC magazine allows continuous operation without manual intervention.

• Powerful Vacuum Hold-Down: MDF sheets can often be warped. Our multi-zone vacuum table, powered by dual 7.5KW pumps (or higher), ensures secure clamping even for small drawer fronts or warped boards, preventing part movement during aggressive 3D carving.

• Aggregates Ready (Optional): For interior door production requiring side processing (lock bodies and hinge pockets), the machine can be equipped with a C-Axis and Aggregate Head, turning 3-axis machining into a 4-axis capable workstation.

Applications

• MDF Cabinet Doors: One-piece routered doors for membrane pressing (PVC) or painting.

• Solid Wood Doors: Assembled stile and rail processing, deep relief engraving.

• Shaker Style Doors: Square pocketing with sharp corner cleaning (using small diameter bits).

• Interior Doors: Full-size room doors with pattern routing and sizing.
