Dual Glue Pot Edge Banding Machine with Rapid Color Switching (Model HE-568SC)
Switch from Light to Dark glue in seconds—Zero downtime. The HYG HE-568SC is the ultimate industrial solution for high-end custom furniture factories that process mixed batches of light and dark panels daily.
Designed as our largest and most capable unit, this Dual Glue Pot Edge Bander eliminates the industry’s biggest bottleneck: glue pot cleaning. With two independent gluing stations installed inline, operators can switch between White Glue (for white cabinets) and Transparent/Black Glue (for wood grains) instantly via the touchscreen, maximizing spindle uptime and production profit.
Why the HE-568SC is the “Color-Switching King”?
1. Independent Dual Gluing System
The HE-568SC features a sophisticated tandem layout: Heating Lamp 1 → Gluing 1 → Pressing 1 followed by Heating Lamp 2 → Gluing 2 → Pressing 2.
The Workflow: You can keep Pot A filled with light glue and Pot B filled with dark glue. When the batch changes, the machine automatically disengages the first unit and engages the second. No draining, no scraping, no waiting.
2. Chemical Spraying for “Piano Gloss” Finish
High-end furniture demands a spotless surface. The HE-568SC integrates a full chemical treatment suite:
Separating Agent (Entry): Sprayed before pre-milling to prevent glue from sticking to the panel face.
Cleaning Agent (Exit): Sprayed before buffing to loosen any residue.
Result: Panels emerge from the machine perfectly clean, requiring no manual wiping, even on sensitive High Gloss Acrylic or Super Matt surfaces.
3. Double Buffing Station
Standard machines have one buffing unit. The HE-568SC features Buffing 1 and Buffing 2.
Impact: The first station removes cleaning fluid and heavy residue; the second station polishes the PVC edge to a mirror shine. This ensures the edge band sheen matches the panel surface perfectly.
4. The 8.6-Meter Industrial Standard
This is a production line in a single chassis. At 8650 mm long, it is a beast.
Stability: The sheer mass and length allow for the integration of 17 distinct process steps without vibration interference. The 24 KW total power system drives this extensive array of motors effortlessly at 15-23 m/min.

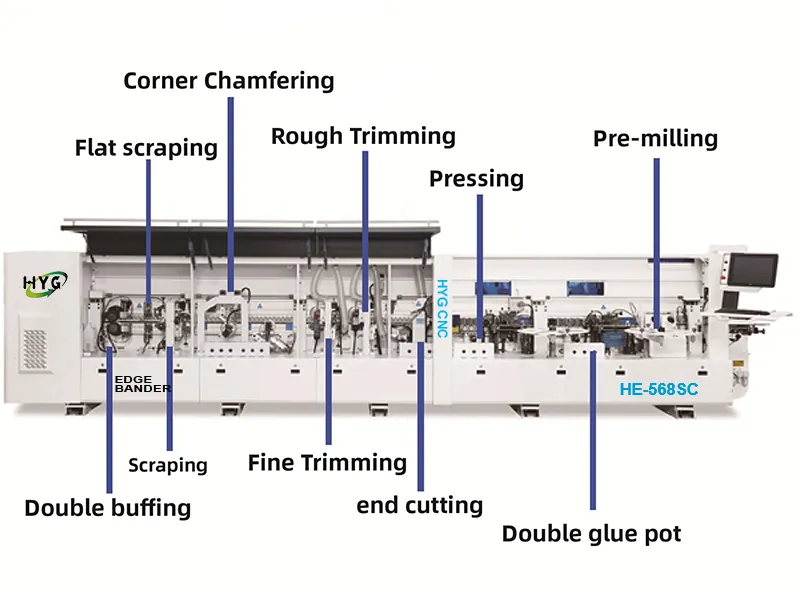

The Ultimate 17-Step Process Workflow
The HE-568SC executes the most comprehensive sequence in the industry:
Separating Agent: Prevents glue adhesion to the face.
Pre-milling: Dual diamond cutters for a perfect edge.
Heating Lamp 1: Preheats panel edge for Pot 1.
Gluing 1 & Pressing: Primary Glue Application.
Heating Lamp 2: Preheats panel edge for Pot 2 (if active).
Gluing 2 & Pressing: Secondary Glue Application (Color Switch).
End Cutting: Flush cuts front/rear.
Rough Trimming: Removes heavy excess.
Fine Trimming: Creates the radius.
Profile Tracking: Rounds the corners.
Scraping: Smooths knife marks.
Flexible Edge Scraping: Specialized flat scraping for glue lines.
Cleaning Agent: Loosens residue.
Buffing 1: Initial clean/polish.
Buffing 2: Final high-gloss shine.
Technical Specifications
| Parameter | Specification |
| Model | HE-568SC (Dual Pot Flagship) |
| Core Feature | Dual Glue Pots + Dual Buffing |
| Machine Size | 8650 * 980 * 1820 mm |
| Total Power | 24 KW (Maximum Power) |
| Feeding Speed | 15 – 23 m/min |
| Panel Thickness | 10 – 60 mm |
| Edge Band Thickness | 0.4 – 3 mm |
| Panel Length (Min) | ≥ 120 mm |
| Panel Width (Min) | ≥ 60 mm |
| Working Pressure | 0.6 Mpa |
Ideal Applications
High-End Customization Factories: Producing a mix of white, grey, and wood-grain cabinets on the same shift.
Luxury Showroom Furniture: Where any visible glue line or manual cleaning mark is unacceptable.
High-Gloss Acrylic Processing: Utilizing the chemical spray and dual buffing for a glass-like finish.
Expert Comparison: HE-468PRG vs. HE-568SC
To help you decide (Expert Guidance):
| Feature | HE-468PRG (Grooving) | HE-568SC (Dual Glue) |
| Primary Advantage | Structural Efficiency (Grooving) | Aesthetic Efficiency (Color Switching) |
| Glue Pots | Single | Dual (2x) |
| Buffing Units | Single | Dual (2x) |
| Machine Length | 7.1 meters | 8.65 meters |
| Best For | Wardrobe Carcass Production | High-End Door & Panel Finishing |

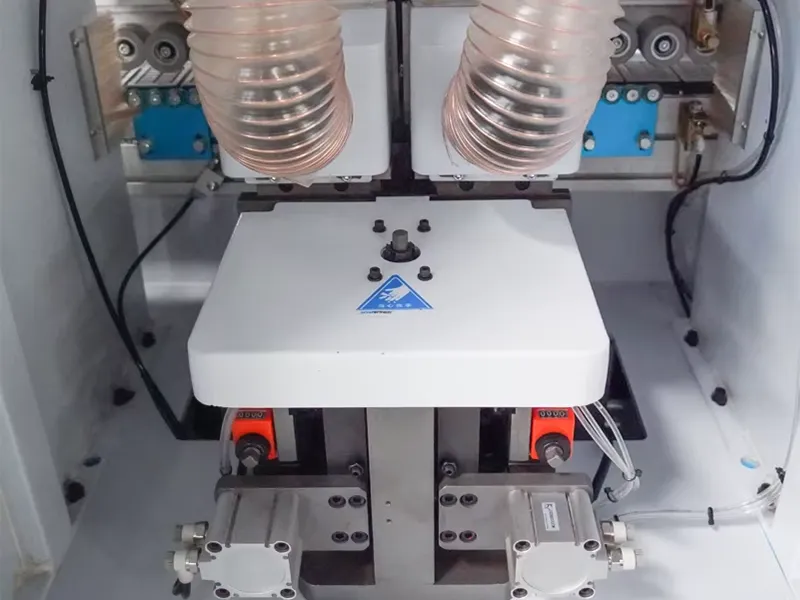

Diamond Pre-Milling for Seamless Joints
Key Benefit: Eliminate saw marks and burrs instantly for a perfectly flat edge.
Bullet Points:
PCD Diamond Cutters: High-precision milling tools that ensure long service life.
Surface Preparation: Removes ripple marks (corrugated traces) and cutting defects.
Ideal Bonding: Creates a smooth, vertical surface for a tighter, stronger bond.
View Technical Details +
Dual Glue Pot
Dual Glue Pot System Instant Color Switching & Seamless Bonding
No Downtime: Switch between light and dark glues in seconds.
Versatile: Perfect for both thin PVC and thick veneer.
Result: A minimal, invisible glue line for high-end furniture.
View Technical Details +

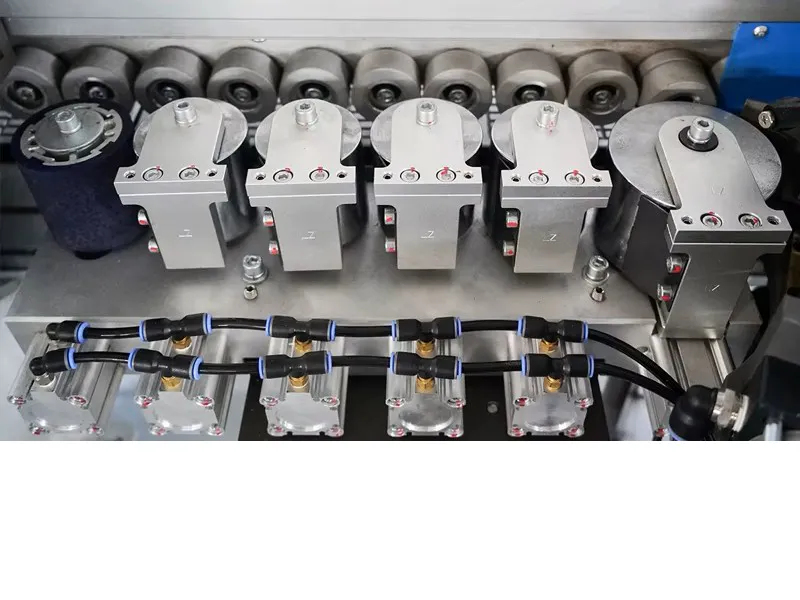

Six-Roller Pressing
Heavy-Duty 6-Roller Pressing Unit Stronger Force, Flawless Fit
Unique Configuration: 1 Master Steel + 4 Auxiliary Steel + 1 Rubber Wheel.
Benefit: Delivers significantly stronger pressure than standard 4-roller models.
Outcome: Ensures a gap-free, zero-joint look.
View Technical Details +
High-Speed End Cutting Unit
Fast, stable, and gentle on your boards.
Bullet Points:
Dual-Motor Precision: Cuts front and rear excess tape efficiently.
Stable Movement: High-speed cutting with zero vibration.
Board Protection: Smart tracking ensures cutting without bumping or damaging the panel.
View Technical Details +
Heavy-Duty Rough Trimming
Efficient excess removal with initial shaping.
Bullet Points:
Rapid Removal: Quickly cuts off excess top and bottom edge tape.
Corner Shaping: Uniquely designed to form rounded corners right from the start.
Superior Foundation: Creates a clean, smooth surface for the final finishing stages.
View Technical Details +
High-Precision Fine Trimming
Refining the rough cut into a perfect curve.
Bullet Points:
Precision Profiling: Refines the edge “more carefully” after the rough trimming stage.
Smooth R-Edge: Creates a smooth, consistent radius (R-profile) on the tape.
Aesthetic Finish: Removes any remaining roughness to make the board look and feel nicer.
View Technical Details +
Profile Tracking (Corner Rounding)
Perfect curves for all 4 corners.
Bullet Points:
4-Corner Trimming: Automatically rounds the leading and trailing edges of the panel.
Smooth Arc: Trims the sharp corners into a delicate small arc.
Safety Finish: Eliminates sharp points, ensuring the edge is smooth and does not stab hands.
View Technical Details +
Radius Scraping Unit (R-Scraping)
Removing knife marks for a silky smooth finish.
Bullet Points:
Carbide Precision: Equipped with super-hard alloy R-knives for long-lasting sharpness.
Mark Removal: Scrapes off the “fine lines” (cutter marks) left by the trimming process.
Super Smooth: Ensures the edge radius is perfectly smooth and pleasant to touch.
View Technical Details +

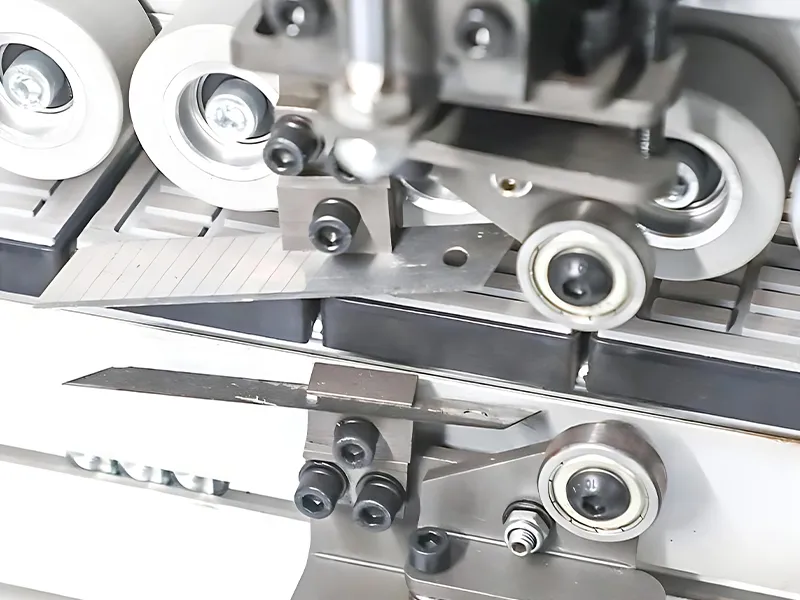

Flat Scraping (Glue Scraping)
Eliminating glue residue for a spotless finish.
Bullet Points:
Alloy Precision: Durable alloy flat knives ensure a consistent, sharp cut.
Glue Removal: Effectively scrapes off excess residual glue from the board surface.
Perfectly Flush: Trims any tiny overhangs to make the tape perfectly level with the board.
View Technical Details +

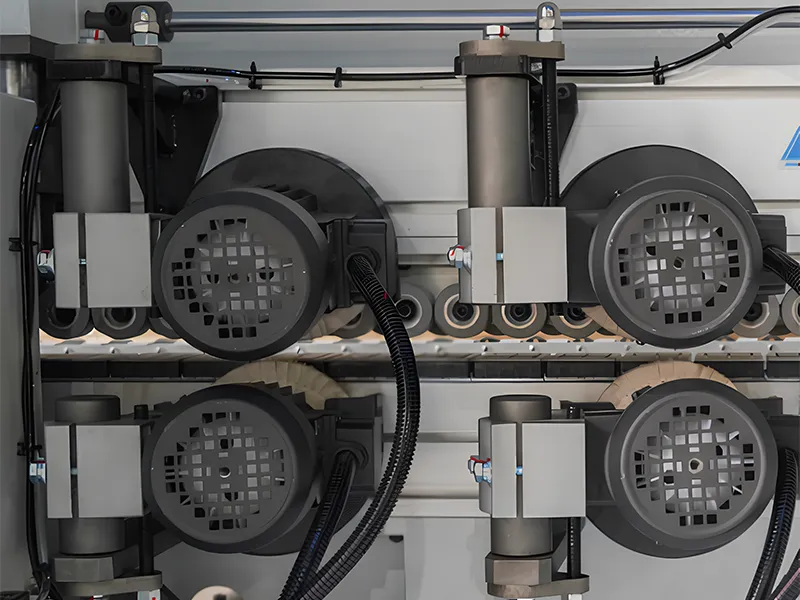

High-Gloss Double Buffing Unit
The final touch for a perfect, mirror-like finish.
Bullet Points:
Dual-Station Polishing: Two sets of cotton cloth wheels provide double the cleaning and polishing power.
Extended Contact Area: The larger polishing surface ensures better coverage of the edge strip.
Color Restoration: Quickly eliminates stress marks and restores the natural color and shine of the edge band.
View Technical Details +
OUR CERTIFICATES
Technical Specifications
| Parameter | Specification |
| Model | HE-568SC (Dual Pot Flagship) |
| Core Feature | Dual Glue Pots + Dual Buffing |
| Machine Size | 8650 * 980 * 1820 mm |
| Total Power | 24 KW (Maximum Power) |
| Feeding Speed | 15 – 23 m/min |
| Panel Thickness | 10 – 60 mm |
| Edge Band Thickness | 0.4 – 3 mm |
| Panel Length (Min) | ≥ 120 mm |
| Panel Width (Min) | ≥ 60 mm |
| Working Pressure | 0.6 Mpa |
