Beschreibung

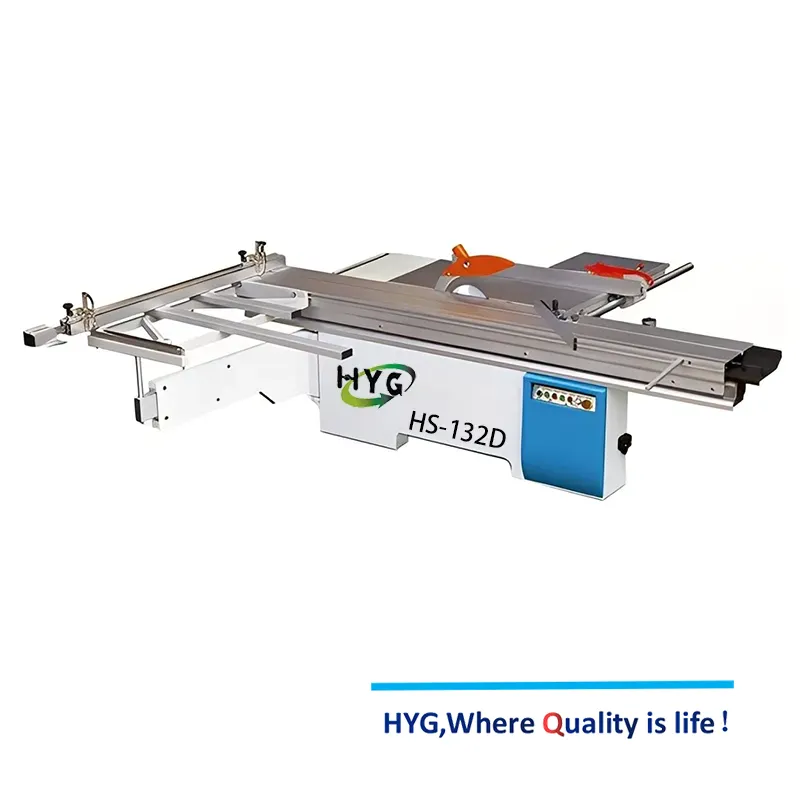

Key Features of the Manual Panel Saw HS-132D:
1. The sliding table saws are built with heavy-duty round tracks, ensuring the table maintains its shape even after extended use.
2. Proprietary technology ensures precise cutting angles for consistently accurate results.
3. Constructed from high-quality and durable metal, these saws are notably heavier than similar models, effectively reducing vibrations during operation.
4. Equipped with a fixed 380V motor for both the main saw and scoring saw, eliminating the need for voltage adjustments and enhancing motor durability.
5. The electric display for tilt degrees offers 100% accuracy, surpassing the capabilities of most other panel saw manufacturers in China.
6. The latest model achieves a cutting tolerance of less than 0.05mm, significantly more precise compared to competitors, whose tolerance typically ranges up to 0.12mm.
7. Available in lengths ranging from 2.2m to 3.8m and widths between 375mm and 435mm, with options for protective covers, long or short spindles, this versatile range caters to diverse panel saw requirements while maintaining top-quality craftsmanship.
Heavy Duty Track
It use 380mm width, and high precision aluminium alloy frame.

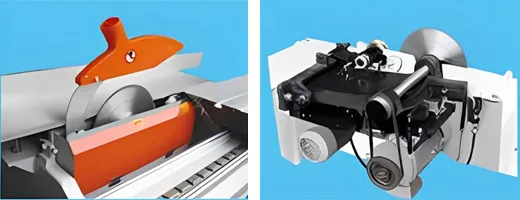

Precision Saw Tilt
Use special high precision tilt control system, can achieve exactly your requested cutting angles.

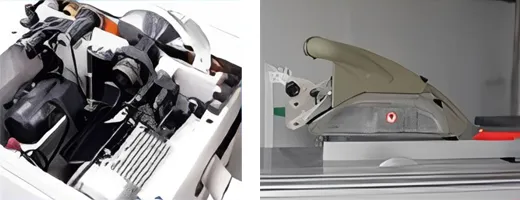

Short Main Spindle Structure
The short main spindle keep saw cutting precision after long time use.
Upside protection cover(also dust collection pipe) is optional,and it’s good to protect worker’s hand when operation.

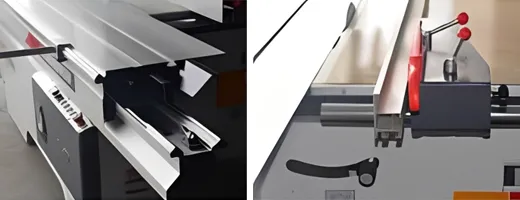

Heavy and Stable Worktable
There’s no any faults on our worktable, because it’s fine selected from 20 years cooperating suppliers.
Our machine body thickness, structure design and weight is much more than competitors’ products .
OUR CERTIFICATES
| Name： | Specification： |
|---|---|
| Model | HS-132D Manual Panel Saw |
| Slide worktable maxdistance | 3400 mm |
| Max sawing length | 3200 mm |
| Max sawing thickness | 80mm |
| Main saw blade size(max) | Ф305x30 mm |
| Groove-saw blade size | Ф120x20 mm |
| Main saw spindle speed | 4000, 5000 r/min |
| Groove-saw spindle speed | 9000 r/min |
| Main saw motor power | 5.5kw |
| Groove-saw motor power | 1.1kw |
| Electronic lift motor | 0.025kw |
| Dust outlet diameter | Ф100 mm(4") |
| Overall dimension(L*WxH) | 3370x3080x1150 mm |
| Working voltage |
AC380V/50Hz can custom made |
| Weight | 830kg |
| 90° electric lift. |
