Automatic High-Speed Crawler Edge Banding Machine with Belt Pressing (Model HE-965)

The 9-Series Revolution: Crawler Transmission for Ultimate Stability. The HYG HE-965 represents the apex of our machine lineup, introducing the Crawler (Track) Conveyor System to replace standard chain pads. This model is engineered specifically as an Aluminum-Wood Integrated Machine, designed to process heavy solid wood and delicate aluminum honeycomb panels with zero surface scratching and maximum traction.

Distinguished by its Hybrid Pressing System (Wheels + Belt) and Customizable Crawler Track, the HE-965 offers the most stable material transport in the industry. Whether you are running sensitive high-gloss sheets or heavy fire-rated doors, the crawler system creates a “floating” effect that eliminates vibration and transport marks.

The “Crawler & Belt” Advantage

1. Customizable Crawler (Track) Conveyor

Unlike the 8-Series chain drive, the 9-Series adopts a Crawler Belt Transmission.

• Surface Protection: The continuous track creates a large contact area with the panel, eliminating the “teeth marks” or slippage that can occur with traditional chain pads on heavy or slippery materials (like aluminum).

• Customization: The track width, pitch, and contact pressure can be customized to suit your specific material density, ensuring delicate handling for hollow cores or rigid grip for solid wood.

2. Hybrid “Wheel + Belt” Pressing System

Adhesion is everything. The HE-965 features a revolutionary Two-Stage Pressing Unit:

• Stage 1 (Wheels): A combination of 3 Steel Wheels + 3 Silicon Wheels provides the initial high-impact pressure to set the glue.

• Stage 2 (Belt Pressing): A dedicated Belt Pressing Unit applies continuous, uniform pressure over a longer length. This “holding pressure” is critical for Aluminum and PUR applications (optional), allowing the bond to cure without spring-back.

3. Aluminum & Wood “All-in-One”

This machine is a true hybrid.

• Versatility: It is calibrated to handle the disparate requirements of rigid Aluminum/Honeycomb panels and porous MDF/Wood panels.

• Optional PUR: The machine is ready for our New Design Rapid-Melt PUR Station (Optional), which elevates water resistance and bonding strength for aluminum applications to a marine-grade level.

4. 4-Motor High-Speed Chamfering

Inheriting the best of the 8-Series, the HE-965 utilizes Four High-Frequency Motors for corner rounding. This ensures that even at high throughput, every corner is rounded with soft-touch precision, essential for high-end furniture safety.

The 15-Step Flagship Workflow

The HE-965 executes a vibration-free process supported by the crawler base:

1. Separating Agent: Prevents glue adhesion to the panel face.

2. Pre-milling: Squares the edge (Aluminum/Wood compatible).

3. Heating Lamp: Prepares edge temperature.

4. Gluing: Precision application (PUR Optional).

5. Six-Wheel Pressing: 3 Steel + 3 Silicon for initial tack.

6. Belt Pressing: Long-contact pressure for permanent bond.

7. End Cutting: Flush trimming.

8. Rough Trimming: Removes bulk tape.

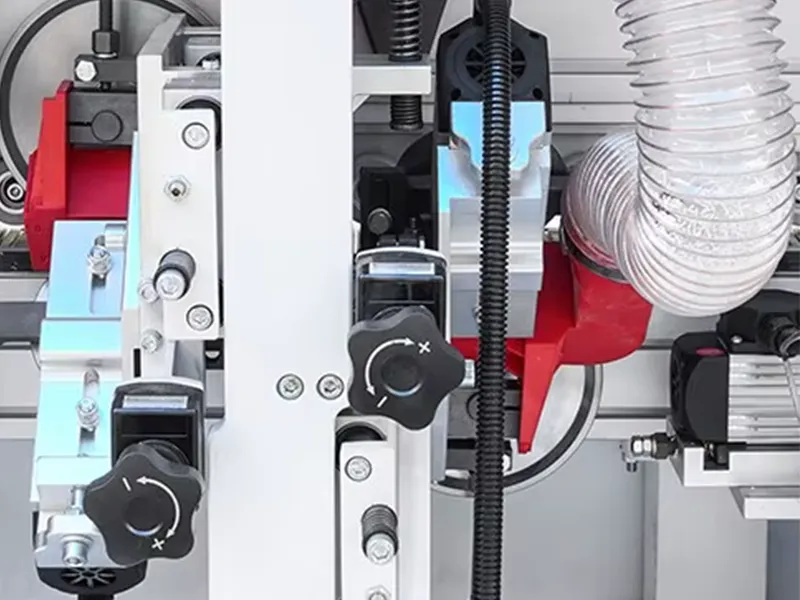

9. Fine Trimming: Creates the radius.

10. Four-Motor High-Speed Chamfering: Perfect corner rounding.

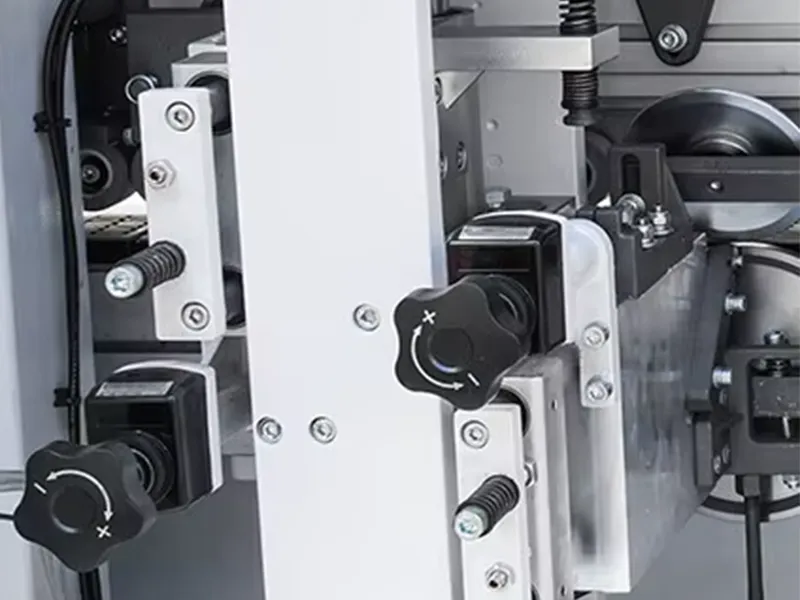

11. Scraping: Removes tool marks.

12. Cleaning: Removes residue.

13. Flexible Edge Scraping: Cleans the glue line.

14. Buffing 1: Initial polish.

15. Buffing 2: Final shine.

Technical Specifications

Ideal Applications

• Aluminum Alloy Doors: Where standard chain pads would scratch the anodized surface.

• Heavy Solid Wood Doors: Where the weight requires the massive traction of a crawler track.

• High-Gloss Panels: The belt pressing system prevents “pressure marks” often left by individual rollers on sensitive glossy surfaces.

Expert Comparison: 8-Series vs. 9-Series
